Price : 155,000원 (VAT별도)
help@crz-tech.com ( 031-701-5057)
삼성 533MHz 고성능 ARM9EJ-S Application Processor 탑재 개발 보드
Samsung S3C2450 (ARM926EJ-S Application Processor) Development Board
Firmware, RTOS (eCoS외 기타), Widows CE 6.0, Linux 지원
USB Host, USB Device, 10/100 Mbps Ethernet, microSD socket, Audio Codec 기본 지원
WIFI/Bluetooth, 각종 TFT LCD, 각종 Sensor (가속도, 자이로, 기압, 리모콘 등), Camera 인터페이스 확장 지원
CPU : ARM926EJ Samsung S3C2450 533Mhz
Memory : Mobile DDR2 64Mbytes , SLC NAND Flash 256Mbytes
OS : Wince 6.0, Linux , Firmware 지원
부팅 모드 : SD/MMC or NAND 모드 지원
Display : TFT LCD Controller 내장
Audio : Wolfson WM8960 with 1W Stereo Speaker Amplifier
USB Host 1.1 : 1 Port (Full Speed)
USB Device 2.0 : 1 Port
SD : SD/MMC Port0 (WiFi/BT) SD/MMC Port1 (SD Boot)
WiFi/BT 커넥터 : SDIO 0 Channel 802.11B,G,N
Camera : 1Port 1.3M Pixel Camera
UART : UART0 , UART1 (Debug) , UART2 (Expansion) , UART3 (GPS)
Sensor Interface : I2C 0 Port (3-Axis, Gyro, Light, Remocon etc)
Ethernet : SMSC LAN9220 10/100Mbps Ethernet Constroller
Power : DC-JACK 5V, 2A
Button : Reset: 1, Button: 2
Boot Switch : 1
LED indicator : 2
Connectors(80X2) : EBI, UART, I2C GPIO etc
Dimensions : CPU 75 x 55 mm Base 145 x 95 mm
Documents

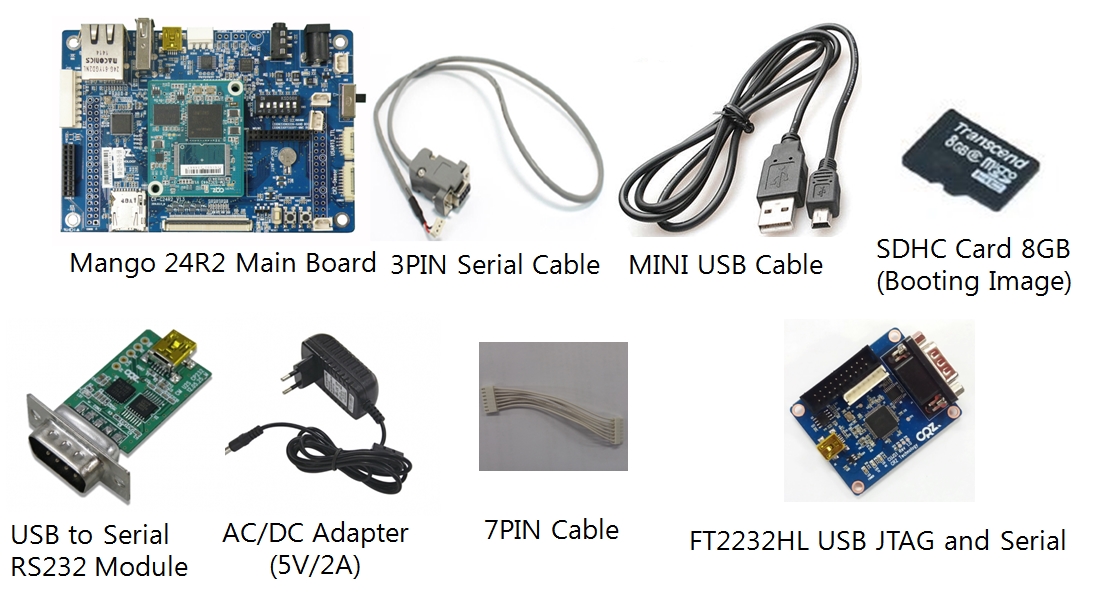

Shipping Materials
Mango24R2 Main Board : 1ea
3pin Serial Cable : 1ea
Micro SD Card (Linux Boot Image 포함) : 1ea
Mini USB Cable : 2ea
5V DC Adapter : 1ea
JTAG Converter Board 6 to 20 : 1ea
FT2232 USB JTAG and Serial : 1ea
USB to RS232 Module : 1ea
7Pin cable
Block Diagram
배치도
내용
