Latest Post


 지그비 통신과 MCU 공부에 적합한 구성

l  Zigbee 2.4GHz 포함


Continue reading 2016-05-26 오후 6:01:33

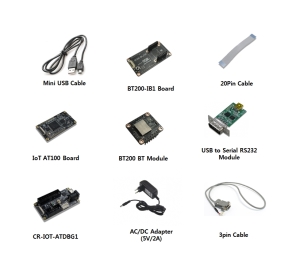

Package Contents

l  CR-BT200 Module : 1ea

l  CR-BT200-IB1 Board : 1ea

l  AT100R2 보드 : 1ea

l  IoT Thing Debug Board (CR-IOT-ATDBG1) : 1ea

l  20Pin Cable : 1ea

l  3pin Serial Cable : 1ea

l  USB to Serial RS232 Module : 1ea

l  Mini USB Cable : 1ea

l  5V AC DC Adapter : 1ea


Continue reading 2015-08-17 오후 9:20:11

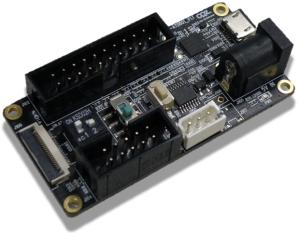

l  JTAG Connector

l  CC Debugger Connector

l  MINI USB Connector

l  RS232 level Converter

l  5V DC Power jack

l  3.3V LDO

l  BOOT / POWER Mode select Switch

l  UART select Switch

l  Reset Switch

l  Dimensions : 60mm x 30mm


Continue reading 2015-04-30 오전 10:17:14

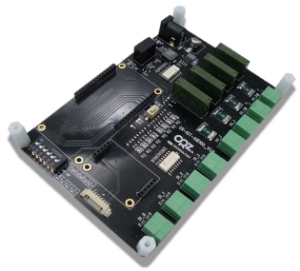

l  Compatible with zFrog IoT thing Board (CR-IOT-AT100)

l  Support Sensor Connector

l  4 Input Port

l  4 Output Port

l  Input / Output Isolation

l  Input Indicator LED  : 4ea

l  Ouput Indicator LED : 4ea

l  Input Voltage : 12V , 1A

l  Reset Button

l  Dimensions : 120mm x 80mm


Continue reading 2015-04-29 오후 5:33:29

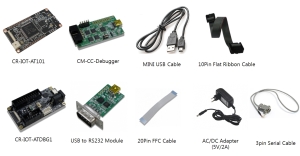

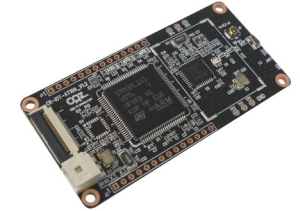

l  Zigbee 2.4GHz

l  STM32L0 CPU

l  Intelligent processing with low-power high-performance 32bit Cortex-M3 MCU

l  Input voltage : 2.3~3.6V

l  Dimensions : 60mm * 30mm




Continue reading 2015-04-29 오후 5:25:09

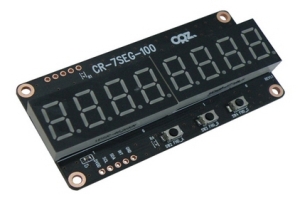

l  Individual LED Segment Control

l  Supply Voltage Range : 2.7 to 5.5V

l  Brightness Control 가능

l  1MHz I2C-Compatible Interface

l  Support LEFT, RIGHT Scroll Display

l  Max 4 x 8FND 7-Segment 가능

l  Dimensions : 60mm X 30mm


Continue reading 2015-04-29 오후 5:17:03

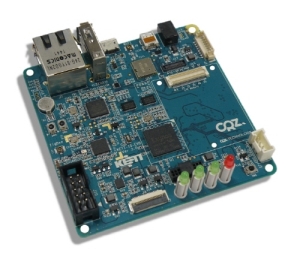

l Samung S5PC220 Exynos 4412 Cortex-A9 Quad Core

l LPDDR2 1GByte

l On-Board Zigbee 2.4GHz

l On-Board Buzzer

l On-Board WiFi/BT SDIO, 802.11BGN

l ARM Max Clock : 1400MHz

l GPU ARM Mail-400

l 1 x USB 2.0 Host

l 1 x USB 2.0 Device

l 1 x MIPI Camera Connector

l Boot / Storage : mircroSD

l 10/100 Ethernet (RJ45)

l Input Power Supply : 5V 2A

l 1 x HDMI 1.4 version Support

l 1 x LTE/3G Modem Connector

l Expansion Sensor Header

l Download Header for Zigbee Image

l OS Support : Linux(Qt), Android,Ubuntu

l Dimensions : 80 x 80 mm


Continue reading 2015-02-26 오후 8:17:27

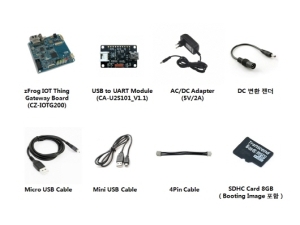

l  Samung S5PC220 Exynos 4412 Cortex-A9 Quad Core

l  LPDDR2 1GByte

l  On-Board Zigbee 2.4GHz

l  On-Board Buzzer

l  On-Board WiFi/BT SDIO, 802.11BGN

l  ARM Max Clock : 1400MHz

l  GPU ARM Mail-400

l  1 x USB 2.0 Host

l  1 x USB 2.0 Device

l  1 x MIPI Camera Connector

l  Boot / Storage : mircroSD

l  10/100 Ethernet (RJ45)

l  Input Power Supply : 5V 2A

l  1 x HDMI 1.4 version Support

l  1 x LTE/3G Modem Connector

l  Expansion Sensor Header

l  Download Header for Zigbee Image

l  OS Support :  Linux, Android

l  Dimensions : 80 x 80 mm






Continue reading 2015-06-17 오후 9:27:26
