Mango64R3 Standard Package 1 [ S3C6410 EVB ]





Price : 350,000(VAT별도)

help@crz-tech.com ( 031-701-5057)


Mango 64R3 Feature


ARM1176 삼성 S3C6410 CPU로 제작된 자작 보드,

Firmware, RTOS, Linux, Wince 공부에 적합한 보드로서,

CPU 모듈 보드와 확장보드로 나누어 설계를 했습니다.

- Firmware, RTOS (eCoS외 기타), Widows CE 6.0, Linux 지원

- USB Host, USB Device, 10/100 Mbps Ethernet, microSD socket, Audio Codec 기본 지원

- WIFI/Bluetooth, 각종 TFT LCD, GPS, Camera 인터페이스 확장 지원



SPECIFICATION

CPU



Samsung S3C6410

ARM1176JZF-S 533/667MHz

Memory



Mobile DDR

128Mbytes



SLC NAND Flash

256Mbytes







Display



7" WVGA(800x480) Color TFT

with Touch Screen Interface







Audio



Wolfson WM8960 Audio Codec

with 1W Stereo Speaker Amplifier

Ethernet



SMSC LAN9220

10/100Mbps

USB



USB 1.1 Host





USB 2.0 OTG



SD



SD/MMC Port 0

Standard SD Connector



SD/MMC Port 1

WiFi Expansion Connector



SD/MMC Port 2

Expansion Connector

 UART



UART Port 0

Bluetooth or Expansion Connector



UART Port 1

Standard Debug Port



UART Port 2

Expansion Connector



UART Port 3

GPS or Expansion

JTAG



Standard ARM

JTAG Interface

WiFi/Bluetooth



SDIO ,802.11b,g,n 지원,

BT( UART0 or SDIO )



GPS



UART3



 Camera



support Interlaced and Non-Interlaced CCIR601/656 Standard Camera Interface

Keys



2 General Purpose Keys





1 Reset Keys



 Indicators



2 Indicator LED controllable

 GPIO ports

Expansion Connectors



IrDA, Camera, I2S, SPI0/SPI1, SDIO0/2, EBI, UART, LCD



PCB SIZE









<CX-S3C6410 Base>







Documents


l  Source Download

l  Mango64R3 Tutorial

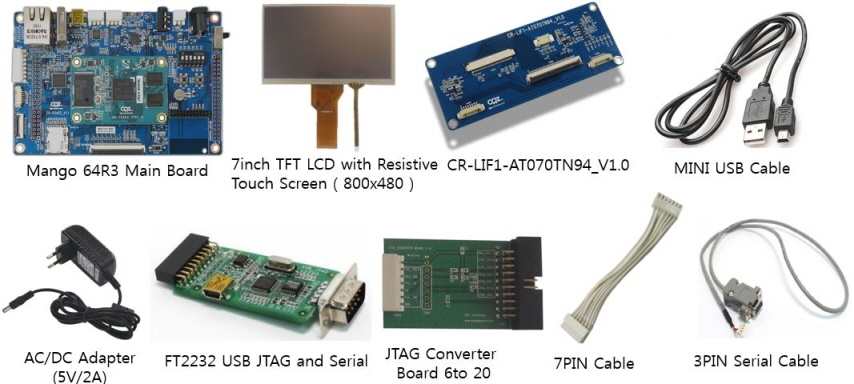

Shipping Materials


  • CM-S3C6416 CPU Board : 1ea
  • CX-S3C6419 Base Board : 1ea
  • 3PIN Serial Cable : 1ea
  • Adapter(5V/2A) : 1ea
  • MINI USB Cable : 1ea
  • JTAG Converter Board: 1ea
  • FT2232 USB JTAG and Serial : 1ea
  • 7" LCD 800X480 With Touch : 1ea
  • 아크릴 Case : 1ea
  • 7PIN Cable : 1ea
