MangoM32F2 Standard package [STM32F207 Cortex-M3 EVB]


Price : 115,000원 ( VAT별도 )

기술 문의 : help@crz-tech.com






MangoM32F2 Feature



  • STM32F207VxT Cortex-M3 MCU (120MHz )

  • Debug and Download : UART1 (RS-232)

  • Ethernet : RTL8201CP 10/100Mbs Ethernet

  • USB Host : 1 Port (Full Speed)

  • USB Device : 1 Port

  •  Power : DC-JACK

  • Button : Reset : 1 , Button : 2

  • Boot Switch : 1

  • LED indicator : 3

  • GPS Test Port : UART3

  • Zigbee Test Port : UART2

  • CAN Transceiver or I2C Port : 1 Port

  • Expansion Connector (50x2) : CAN,UART,I2C,GPIO etc

  • Dimensions : 100 x 70 mm

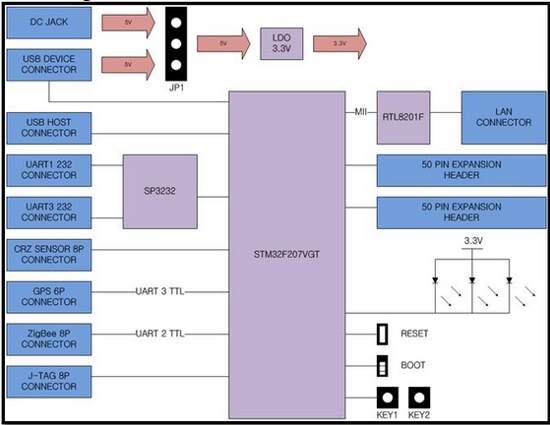

Mango M32F2 Main Board Block Diagram

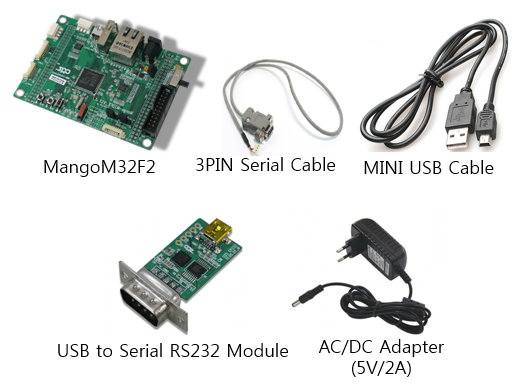

Package Contents

  • MangoM32F2 Main board : 1ea

  • 3PIN Serial Cable : 1ea

  • Mini USB Cable : 1ea

  • USB to Serial RS232 Module : 1ea

  • AC/DC Adapter(5V/2A) : 1ea
