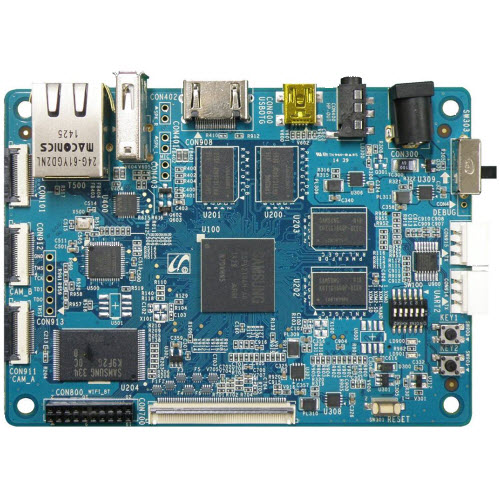

Mango210 Main Board [Cortex-A8 S5PV210 Android EVB ]


Price : 310,000



help@crz-tech.com ( 031-701-5057)



Features

l  CPU : Samsung S5PV210 ARM Cortex A8 , 1GHz Application Processor

l  Memory : Mobile DDR2 512Mbytes , SLC NAND Flash 256Mbytes

l  Display  : 7 WVGA(800x480) Color TFT with Touch Screen Interface

l  Audio : Wolfson WM8960 Audio Codec with 1W Stereo Speaker Amplifier

l  Ethernet : SMSC LAN9220 10/100Mbps Ethernet Controller

l  USB : USB2.0 HOST , USB2.0 OTG

l  SD : SD/MMC PORT 0 ,1 Standard SD Connector

l  SD : SD/MMC PORT 2 Expansion Connector ,

l  SD : SD/MMC PORT 3 WiFi & Expansion Connector

l  UART : UART Port 0 BT & Expansion Connector

l  UART : UART Port 1 ,2 D-SUB9 DEBUG

l  HDMI : V1.3(1080p Full HD)

l  Camera : 1.3M(130만화소),5M(500만화소) Pixel AF camera (옵션)

l  WiFi/BT : SDIO ,802.11b,g 지원, BT(UART0)

l  Connectors : xpansion Connectors(120X2)

l  Connectors : IrDA, Camera, I2S, SPI0/SPI1, SDIO0/2, EBI, UART, LCD

l  Dimensions : 110 x 80 mm




Mango 210 Main Board Block Diagram








부품 배치도














Shipping Materials



l  Mango 210 Main Board : 1ea
