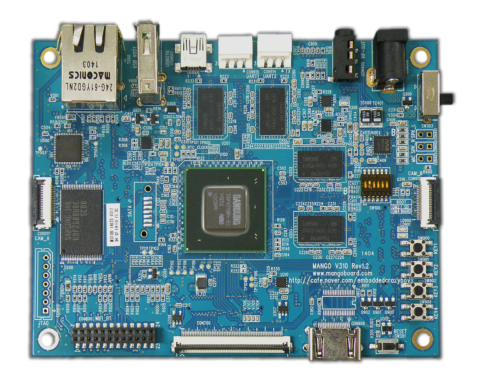

Mango310 Main Board [ Exynos 4210 S5PV310 EVB ]




Price : 385,000

help@crz-tech.com ( 031-701-5057)



Mango 310 Main Board Feature

l  CPU :Samsung S5PV310 ARM Cortex A9 1GHz/1.3GHz Application Processor

l  Memory : DDR3 SDRAM 2GByte(2Gbit x 8), SCL NAND Flash 256Mbyte

l  Display :

l  7 WVGA(800x480) Color TFT with Touch

l  7” 1024x600 (4point Touch)

l  10.1” 1280x800 (10Point Touch)

l  Audio : Wolfson WM8960 Audio Codec

l  Ethernet : SMSC LAN9220 10/100Mbps

l  USB Host 1.1 : 1 Port

l  USB device 2.0 : 1 Port

l  SD : Port 0 (SD/MMC), Port1(SD/MMC), Port2(Expansion), Port3(Wifi)

l  UART : Port 0(Bluetooth or Expansion), Port 1(Debug) , Port 2(Expansion)

l  Camera : 2 Port Support (1.3M, 5M Pixel AF Camera)

l  HDMI : 1.3V(1080p Full HD)

l  Wifi : SDIO, 802.11BGN Support, BT : Uart0, SDIO

l  SATA : SATA 2.0 Support(Option)

l  Button : Reset : 1ea , Button : 4 ea

l  LED Indicator : 2ea

l  Power : DC-JACK 5V,2A

l  Dimensions : 120mm(W) * 90 mm(H)

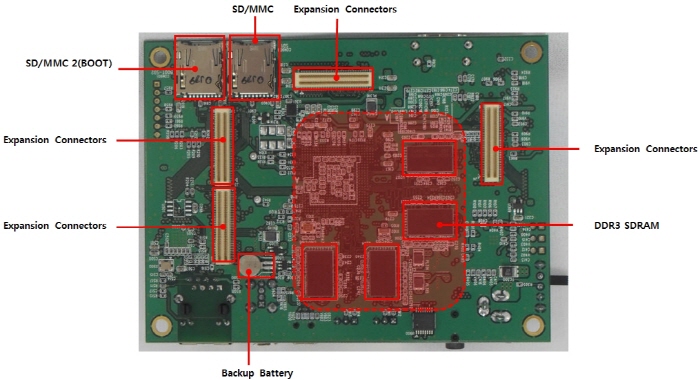

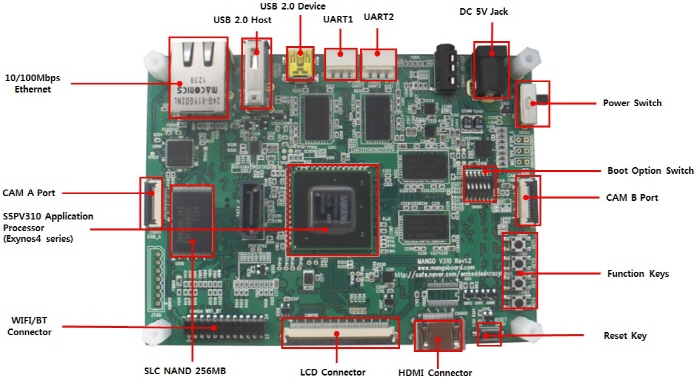

부품 배치도











Shipping Materials

l  Mango310 Main Board : 1 ea
