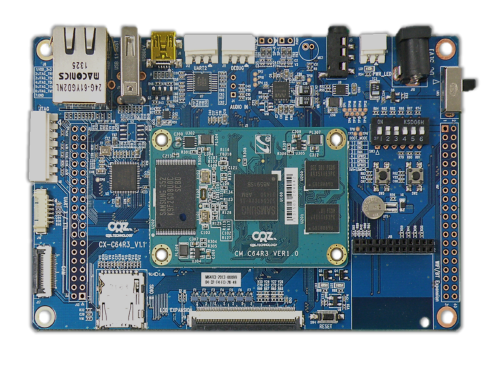

Mango64R3 Main Board [ S3C6410 EVB ]

Price : 190,000원(VAT별도)

help@crz-tech.com ( 031-701-5057)




Mango 64R3 Main Board Feature


l  CPU : ARM1176JZF-S 533/667MHz Samsung S3C6410

l  Memory : 128Mbyte Mobile DDR , SCL NAND Flash 256Mbyte

l  Display : 7: WVGA(800x480) Color TFT with Touch

l  Audio : Wolfson WM8960 Audio Codec

l  Ethernet : SMSC LAN9220 10/100Mbps

l  USB Host 1.1 : 1 Port

l  USB device 2.0 : 1 Port

l  SD : Port 0 (SD/MMC), Port1(Wifi), Port2(Expansion)

l  UART : Port 0(Bluetooth or Expansion), Port 1(Debug) , Port 2(Expansion) , Port 3(GPS or Expansion)

l  Camera : CCIR601/656 Standard Camera Interface

l  Button : Reset : 1ea , Button : 2ea

l  LED Indicator : 2ea

l  Power : DC-JACK 5V,2A

l  Dimensions : CPU 60mm(W) * 40 mm(H)  Base 130mm(W) * 85 mm(H)




Shipping Materials

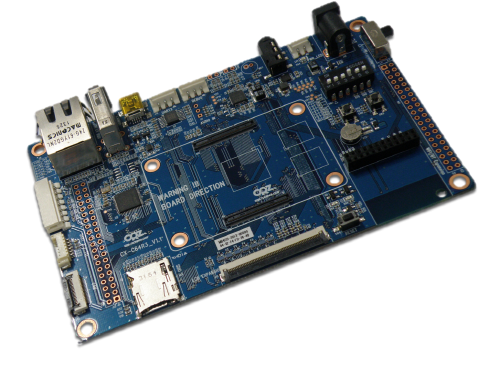

l  CM-S3C6410 CPU Board + CX-S3C6410 Base Board : 1ea






             +
