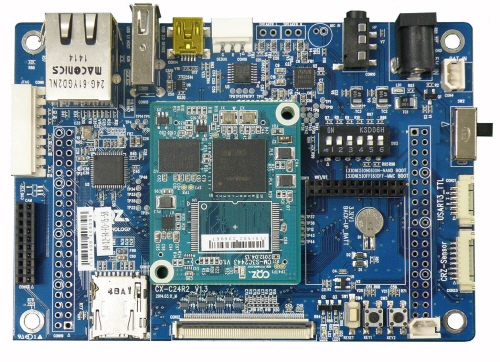

Mango24R2 Main Board [ S3C2450 EVB ]


Mango24R2 Main Board [ S3C2450 EVB ]


Price : 110,000



help@crz-tech.com ( 031-701-5057)





Mango 24R2 Main Board Kit Feature

삼성 533MHz 고성능 ARM9EJ-S Application Processor 탑재 개발 보드



Samsung S3C2450 (ARM926EJ-S Application Processor) Development Board

Firmware, RTOS (eCoS외 기타), Widows CE 6.0, Linux 지원

USB Host, USB Device, 10/100 Mbps Ethernet, microSD socket, Audio Codec 기본 지원

WIFI/Bluetooth, 각종 TFT LCD, 각종 Sensor (가속도, 자이로, 기압, 리모콘 등), Camera 인터페이스 확장 지원


l  CPU : ARM926EJ Samsung S3C2450 533Mhz

l  Memory : Mobile DDR2 64Mbytes , SLC NAND Flash 256Mbytes

l  OS : Wince 6.0, Linux , Firmware 지원

l  부팅 모드 : SD/MMC or NAND 모드 지원

l  Display :  TFT LCD Controller 내장

l  Audio : Wolfson WM8960 with 1W Stereo Speaker Amplifier

l  USB Host 1.1 : 1 Port (Full Speed)

l  USB Device 2.0 : 1 Port

l  SD : SD/MMC Port0 (WiFi/BT) SD/MMC Port1 (SD Boot)

l  WiFi/BT 커넥터 : SDIO 0 Channel 802.11B,G,N

l  Camera : 1Port 1.3M Pixel Camera

l  UART : UART0 , UART1 (Debug) , UART2 (Expansion) , UART3 (GPS)

l  Sensor Interface : I2C 0 Port (3-Axis, Gyro, Light, Remocon etc)

l  Ethernet : SMSC LAN9220 10/100Mbps Ethernet Constroller

l  Power : DC-JACK 5V, 2A

l  Button : Reset: 1, Button: 2

l  Boot Switch : 1

l  LED indicator : 2

l  Connectors(80X2) : EBI, UART, I2C GPIO etc

l  Dimensions : CPU 75 x 55 mm Base 145 x 95 mm


Documents



l  Quick Start Guide Mango24R2

l  Mango24R2 Tutorials

l  Mango24R2 Source



Mango 24R2 Main Board Block Diagram





부품 배치도






Shipping Materials


l CM24R2 + CX-24R2 Board : 1 ea
