Mango 1808 Main Board [ AM1808 EVB ]

Mango 1808 Main Board [ AM1808 EVB ]



Price : 110,000



help@crz-tech.com ( 031-701-5057)





Mango 1808 Main Board Kit Feature


l  ARM926EJ AM1808 CPU

l  Mobile DDR2 128MB

l  SLC NAND Flash 256MB

l  7” 800x480 with touch or 10.4” 800x600 with touch

l  USB Host 1.1 : 1Port (Full Speed)

l  USB Device 2.0 : 1Port

l  SD : SD/MMC Port 0 , port 1 (WiFi/BT)

l  Camera : Parallel 1 Port

l  UART : UART2 (Debug) / UART1

l  Ethernet : 10/100Mps Ethernet

l  Power : DC-JACK 5V, 1A

l  Button : Reset :1 , Button : 2

l  Boot Switch : 1

l  LED indicator : 1

l  Expansion Connector ( 80x2 ) : EBI,UART,I2C GPIO etc

l  Dimensions : base 120 x 76 mm CPU 50 x 40mm

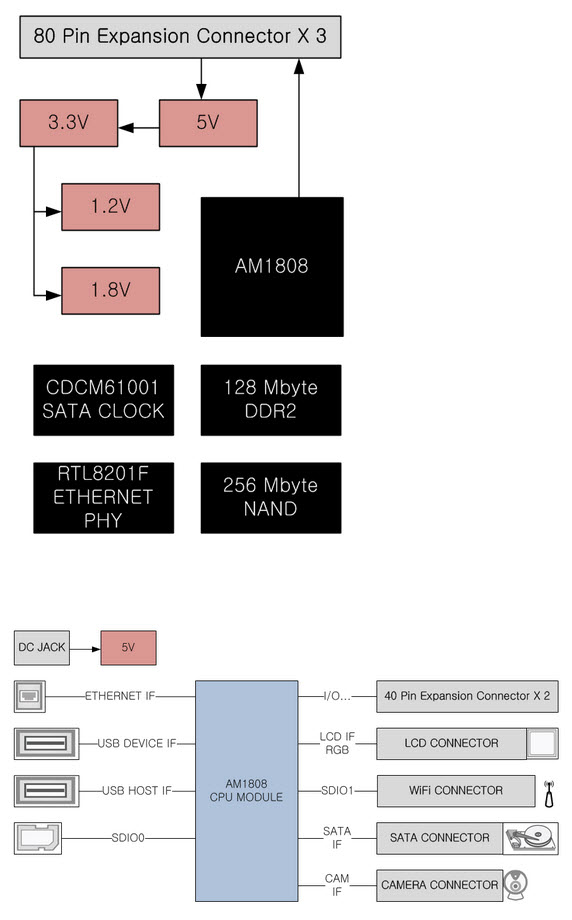

Mango 1808 Main Board Block Diagram

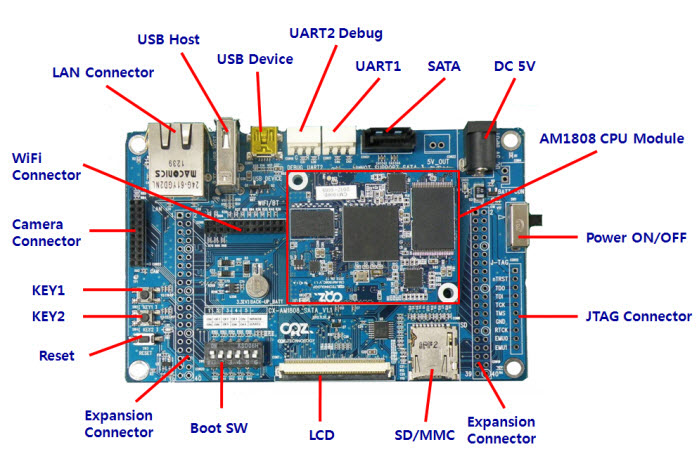

부품배치도










Shipping Materials



l  Mango 1808 CPU+BASE Board  : 1ea
