ARM926EJ-S S3C2450
Mango24R2 Openocd JTAG
Connect and U-boot 실행
1. Openocd JTAG Connect and
U-boot 실행

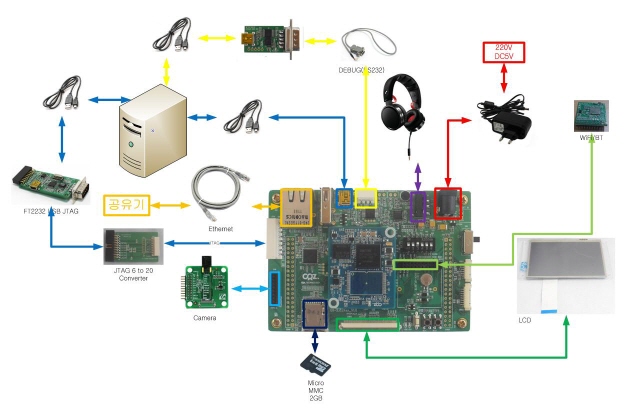

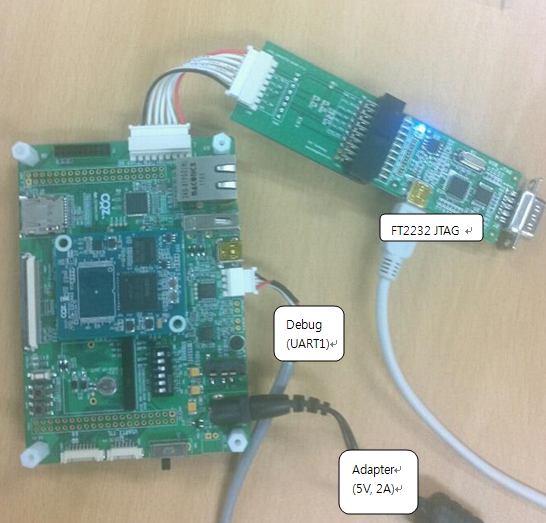

전체 연결도 참조

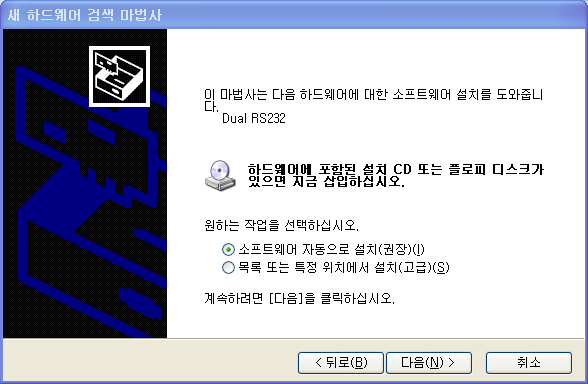

FT2232 USB JTAG 보드와 연결하면 드라이버를 설치하라고 팝업창이 뜹니다.
Driver Download : http://www.ftdichip.com/Drivers/CDM/CDM20814_WHQL_Certified.zip
http://infocenter.arm.com/help/topic/com.arm.doc.ddi0198e/DDI0198E_arm926ejs_r0p5_trm.pdf A.6 Miscellaneous signals TAPID[31:0] Input This is the ARM926EJ-S device identification (ID) code test data register, |
부팅 모드를 SD BOOT 모드로 해서 동작을 합니다.
BOOT MODE : 3 ON , 나머지 OFF
Download
DOS Command 창 실행
$ openocd –f m24r2_s3c2450.cfg |
실행 결과
d:\CRZ_망고보드\Mango2450\Source\m24r2_jtag\m24r2-OpenOCD_S3C2450>openocd.exe -f m24r2.cfg Open On-Chip Debugger 1.0 (2009-04-30-01:48) svn:1547 BUGS? Read http://svn.berlios.de/svnroot/repos/openocd/trunk/BUGS $URL: svn://svn.berlios.de/openocd/trunk/src/openocd.c $ jtag_speed: 100 6000 kHz Info : JTAG tap: s3c2450.cpu tap/device found: 0x07926f0f (Manufacturer: 0x787, Part: 0x7926, Version: 0x0) Info : JTAG Tap/device matched Warn : no telnet port specified, using default port 4444 Warn : no gdb port specified, using default port 3333 Warn : no tcl port specified, using default port 6666 |
다른 DOS 창을 띄웁니다.
$ telnet localhost 4444 |
스크립트 실행
> script m24r2_s3c2450.tcl |
실행 결과
> script m24r2_s3c2450.tcl JTAG tap: s3c2450.cpu tap/device found: 0x07926f0f (Manufacturer: 0x787, Part: 0 x7926, Version: 0x0) JTAG Tap/device matched BUG: debug re-entry from system speed access shouldn't be handled here target state: halted target halted in ARM state due to debug-request, current mode: Supervisor cpsr: 0x400000d3 pc: 0x00001348 MMU: disabled, D-Cache: disabled, I-Cache: enabled cpsr (/32): 0x000000D3 cpsr (/32): 0x000000D3 0x53000000: 00000000 0x4c000024: 0000001d 0x4c000010: 8042c061 0x48000000: 0004920d 0x48000004: 44000040 0x48000010: 000000ff r0 (/32): 0x400000D3 r0 (/32): 0x00000000 0x48000004: 00000042 0x48000010: 00000313 0x48000010: 00000313 0x48000004: 00000043 0x48000004: 00000040 0x30000000: 00001234 0x30000000: 12345678 206592 byte written at address 0x33e00000 downloaded 206592 byte in 7.439000s BUG: keep_alive() was not invoked in the 1000ms timelimit. GDB alive packet not sent! (7609) |
디버깅 창에서 u-boot 실행 결과
U-Boot 1.3.4 (Jun 13 2012 - 18:13:12) for MANGO2450 CPU: S3C2416@534MHz Fclk = 534MHz, Hclk = 133MHz, Pclk = 66MHz Board: MANGO2450 Mobile DDR DRAM: 64 MB Flash: 1 MB NAND: 256 MB *** Warning - bad CRC or NAND, using default environment In: serial Out: serial Err: serial ETH test 1 ETH test 2 Hit any key to stop autoboot: 0 |
