“install.exe”파일과 firmware.bin 파일은 같은 디렉토리에 있어야 합니다.
$install.exe
실행합니다.
1->2->6->3
순서로 입력합니다.
Firmware install complete라는 메시지가 나올것입니다.
다운로드
| Continue reading | 2016-03-15 오후 9:15:05 |

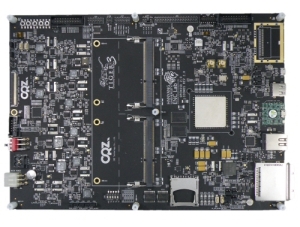

l XC7Z045-3FFG900 Zynq-7000 FPGA
n Dual ARM Cortex-A9 1GHz Core
n NEON DSP co-processor for each core
n 350K LCs
l 1GB DDR3 component memory on PS side
l Two 128Mb Quad-SPI(QSPI) Flash Memories
l NAND Flash Interface
n 2x SO-DIMM NAND Flash Slots
n 4way NAND Flash Interface for each slot.
l 1 SD CARD Slot
l Dual PCIe Gen2 x8 End-Points (Cabled PCIe Interface)
l (One PCIe Gen2 x8 can be configurable to RC)
l 1 Gigabit Ethernet Interface
l 1 USB 2.0 (configurable to Host or Device)
l JTAG and Debug Interface
l 1 USB-UART Port
l 1 ARM JTAG
l 1 PL JTAG
l 1 Digilent USB-JTAG
l Status LEDs
l Buttons and Tactile switches
l Indicators and Switches LEDs and Tactile switches
