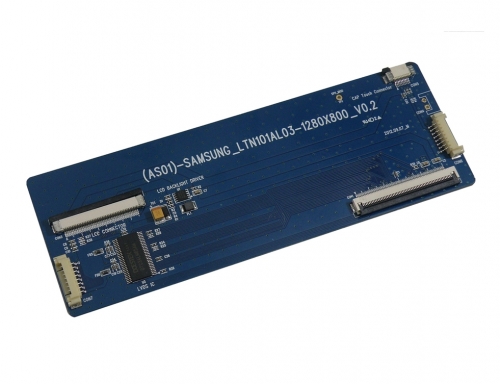

10.1” LCD TTL to LVDS Expansion Board ( AS01-SAMSUNG_LTN101AL03-1280X800_V0.2)





LCD TTL to LVDS Expansion Board Feature



l  Compatible 10.1 inch TFT LCD with Capacitive Touch Screen (1280x800)

l  On Board TTL(RGB) to LVDS Conveter

l  Wide frequency range : 20 to 85 MHz shift clock support

l  +3.3V LVDS 24Bit Flat Panel Display (FPD) Transmitter - 85MHz

l  Support  various resolutions

l  BACKLIGHT PWM step-up DC/DC Converters

l  3.3V I2C interface

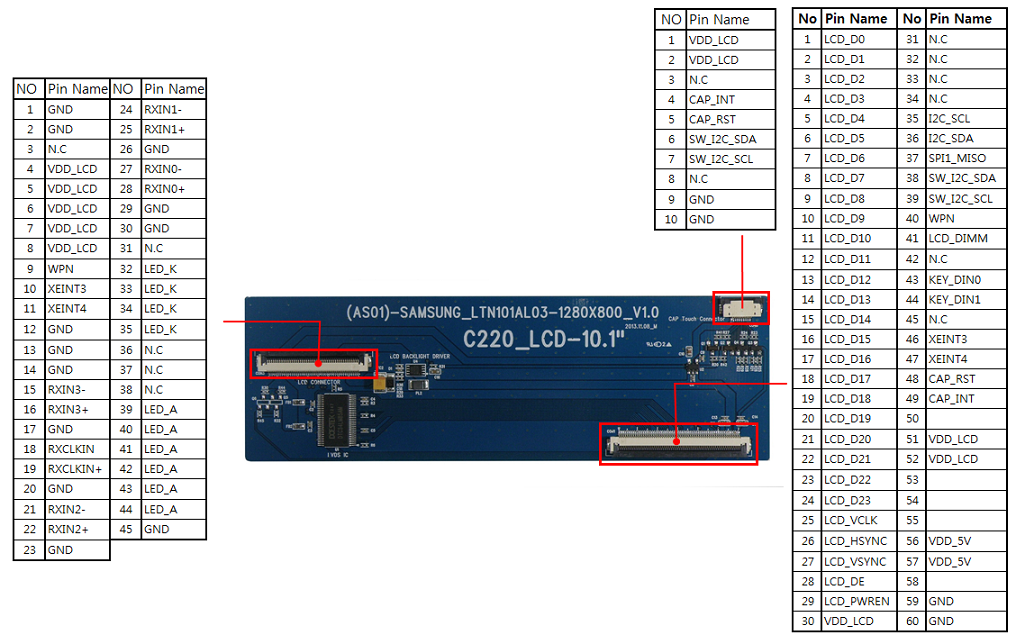

Pin Map



Supported Boards



l  Mango CM-V210+CX-V210 Board

l  Mango CM-V310 Main Board

l  Mango310 Main Board

l  Mango210 Main Board









Shipping Materials



l  LCD interface Board : 1ea
