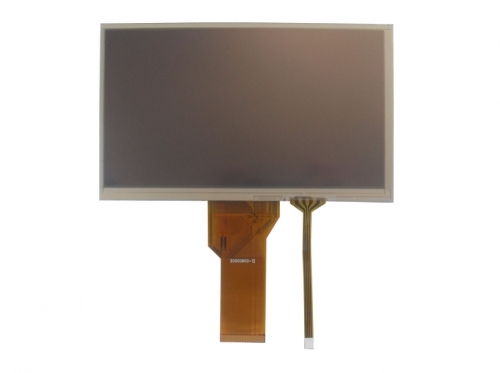

7inch TFT LCD with Resistive Touch Screen ( 800x480 )







7” TFT LCD with Resistive Touch Screen Feature



l  7” TFT Display for the embedded board

l  800x480 WVGA Resolution

l  TFT Screen with integrated 4-wire Resistive Touch Panel

l  24 bit RGB Data support

l  LCD Response time 20ms

l  LCD Luminance 400cd/m2

l  LCD Contrast ratio 500

l  Driver element : a-Si TFT active matrix

l  Display mode : Normally White, Transmissive

l  Dot pitch : 0.0642(W) x 0.1790(H)mm

l  Active area : 154.08(W) x 85.92(H)mm

l  Module size : 164.9(W) x100.0(H) x 5.7(D)mm

l  LCD Operation Temperature : -30 ~ 85oC

l  LCD Weight  150g

l  Touch Operation temperature : -20oC ~ 60 oC






배송 구성품



l  7inch TFT LCD with Resistive Touch Screen ( 800x480 ): 1ea

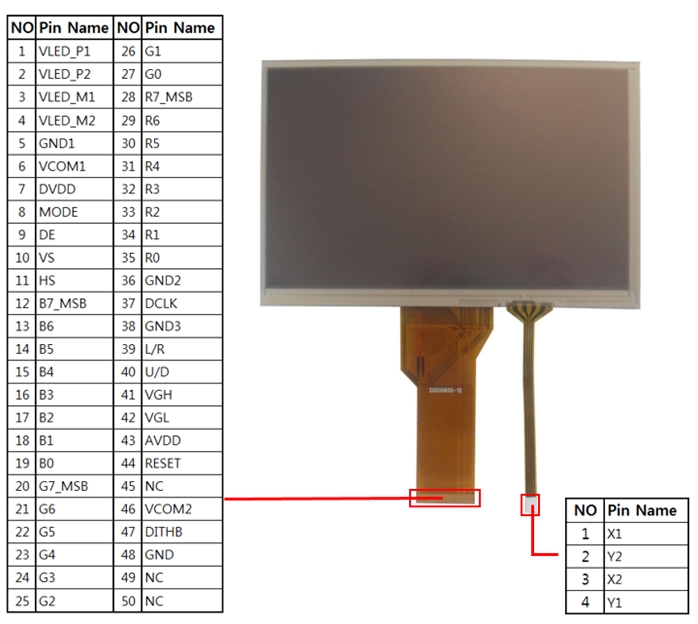

Pin Map

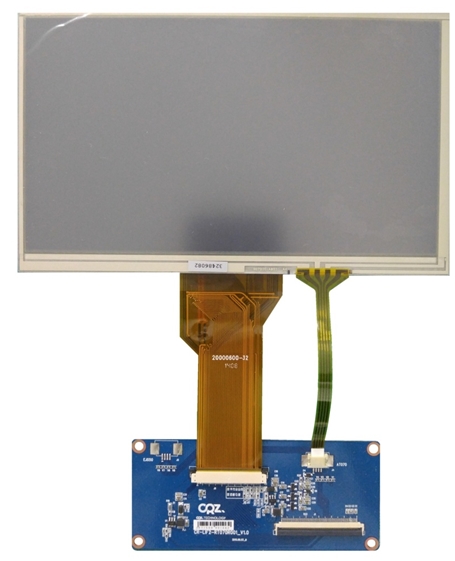

LCD 연결사진




Price : 60,000 (VAT포함)

이메일 : help@crz-tech.com ( 031-701-5057)
