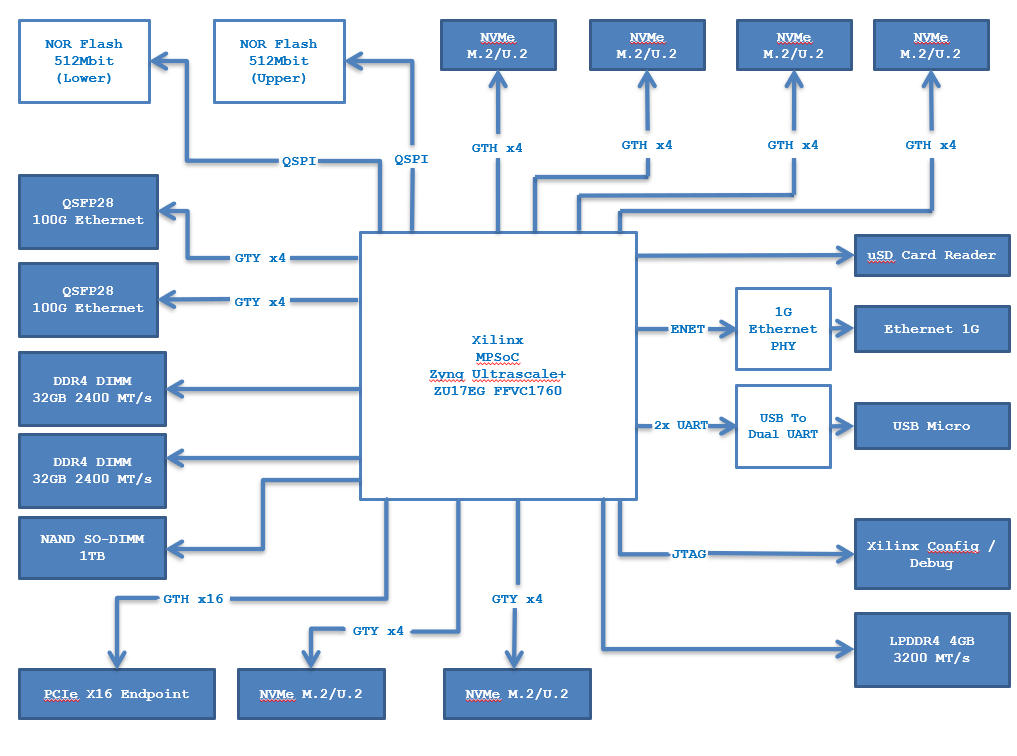

 Block Diagram

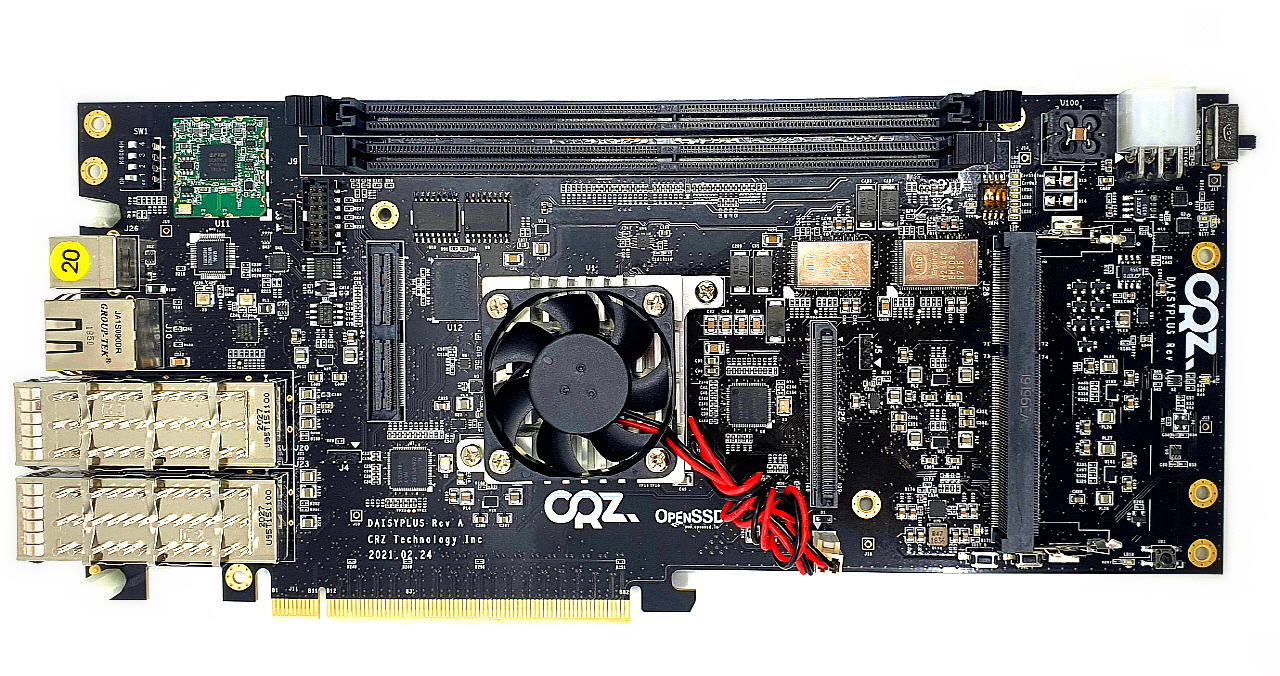

DAISYPlus PCIe NVMe Storage Accelerator

Hardware Specification

lXilinx Zynq Ultrascale+ ZU17EG FPGA (XCZU17EG-2FFVC1760-E)

nQuad-core ARM Cortex-A53 1.5GHz

nDual-core ARM Cortex-R5 600MHz

nARM Mali-400 MP2 Graphics Processing Unit(GPU)

lTwo Programmable clocks

l4GByte LPDDR4 (DDR4-3200)

lTwo 512Mbit Quad-SPI(QSPI) Flash Memories

lSD CARD Slot

l10/100/1000 Ethernet

lJTAG and Debug Interface

nUSB Type B Interface

nTwo UART Ports

nDigilent JTAG

lDIP Switch for various boot mode(JTAG/SD/QSPI)

lFour Status LEDs

lButtons and Tactile switches

lTwo 100G Ethernets

lTwo DDR4 288-pin DIMMs(32GB, DDR4-2400)

l1 NAND Flash Module(1TB, CFM-002)

lPCIe Edge Finger: PCIe Gen3 x16

l120-pin Expansion connector

nUSB 3.0

nDisplay Port

nSATA

n4x GTR 6.0 Gb/s

nTwo PCIe Gen4 x4 Root Ports(M.2 or U.2 NVMe connector)

l140-pin Expansion connector

nFour PCIe Gen4 x4 Root Ports(M.2 or U.2 NVMe connector)

lMain Power : DC 12V

Features

lOpenSSD capable – NVMe Host Controller + NAND Flash Controller + FTL

l200Gbps network access via dual QSFP28 cages

lNVMe-Over-Fabric enables NVMe SSD-based networked storage expansion(up to 4 NVMe SSDs)

lLatency is low as external CPU intervention is not needed

lCost-effective remote storage array is enabled as no external Network Interface Card(NIC) is needed





  Documents

http://crztech.iptime.org:8080/Release/OpenSSD/DaisyPlus-OpenSSD/

Shipping Materials

lDaisyPlus Openssd Board : 1ea

lAC/DC Adapter (12V/3A) : 1ea

lDC Power Adapter Converter Jack : 1ea

lUSB A to B Type cable : 1ea
