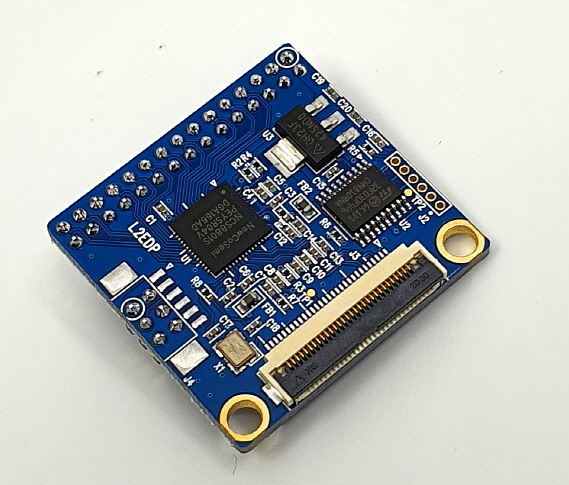

LVDS to eDP Converter Board [CR-L2EDP1]

21,000원(VAT별도)

help@crz-tech.com

Features

l  PCB : 30mm x 31mm x8mm

l  Display

Ø  HD to WQXGA(2560*1600) Supported

Ø  LVDS input : Sigle/Dual-channel 6/8bit LVDS(Sync)

Ø  Embedded-DisplayPort(eDP) : 2-lane

Ø  Reference Clock : 19MHz and 100MHz

Ø  2.5V or 3.3V IO supply

Ø  Backlight Power : 3.3V – 12V



Shipping Materials

l  CR-L2EDP1 : 1 ea

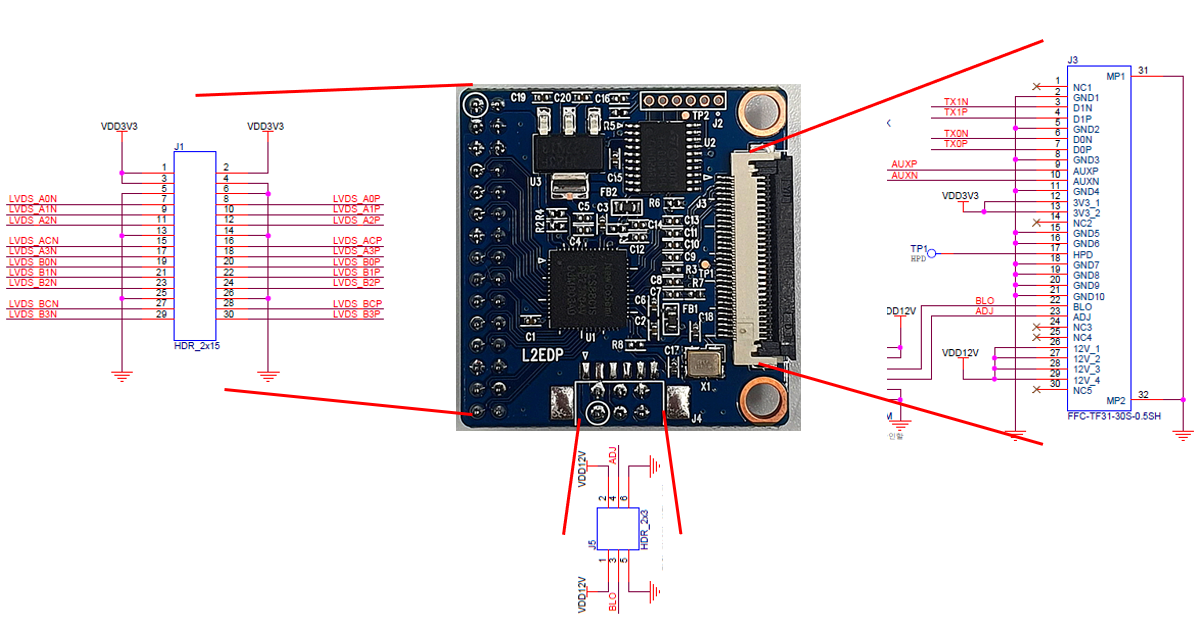

PINMAP

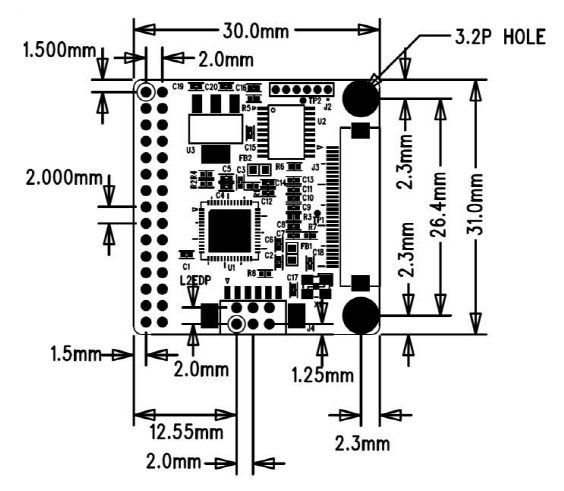

DIMENSION
