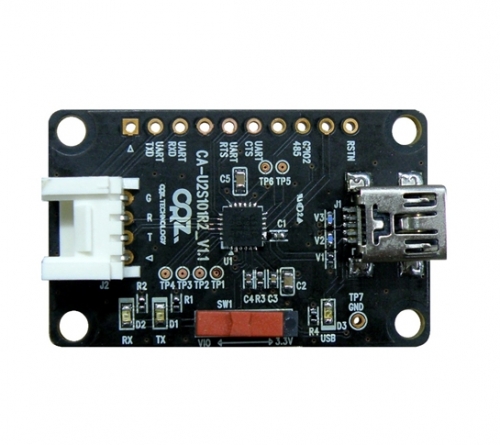

USB to Serial UART Module (CA-U2S101_V1.1)


USB  to  UART  Module Feature

l  멀티 IO 전압 지원 :  1.8V 과 3.3V

l  USB to UART Converter

l  5PIN min-USB Type Connector

l  Support driver Window ,Linux

l  Demension : 40mm X 25mm

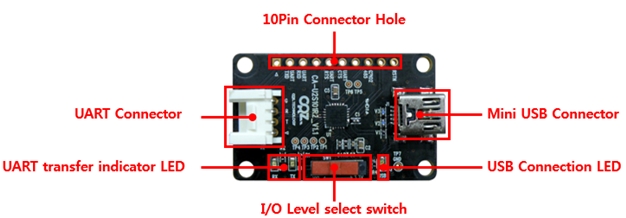

Hardware part Positions

How to use input/output level select switch

l  VIO : When using the module of the 1.8V signal level

l  3.3V : When using the module of the 3.3V signal level

Shipping Materials

l  USB to UART Module 1EA

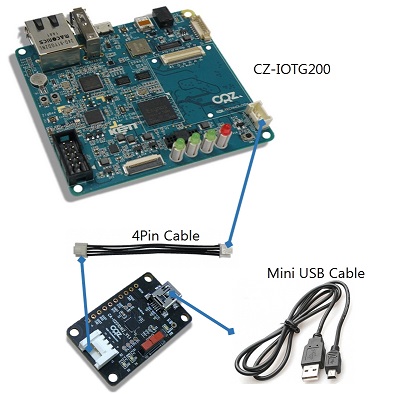

How to USE
