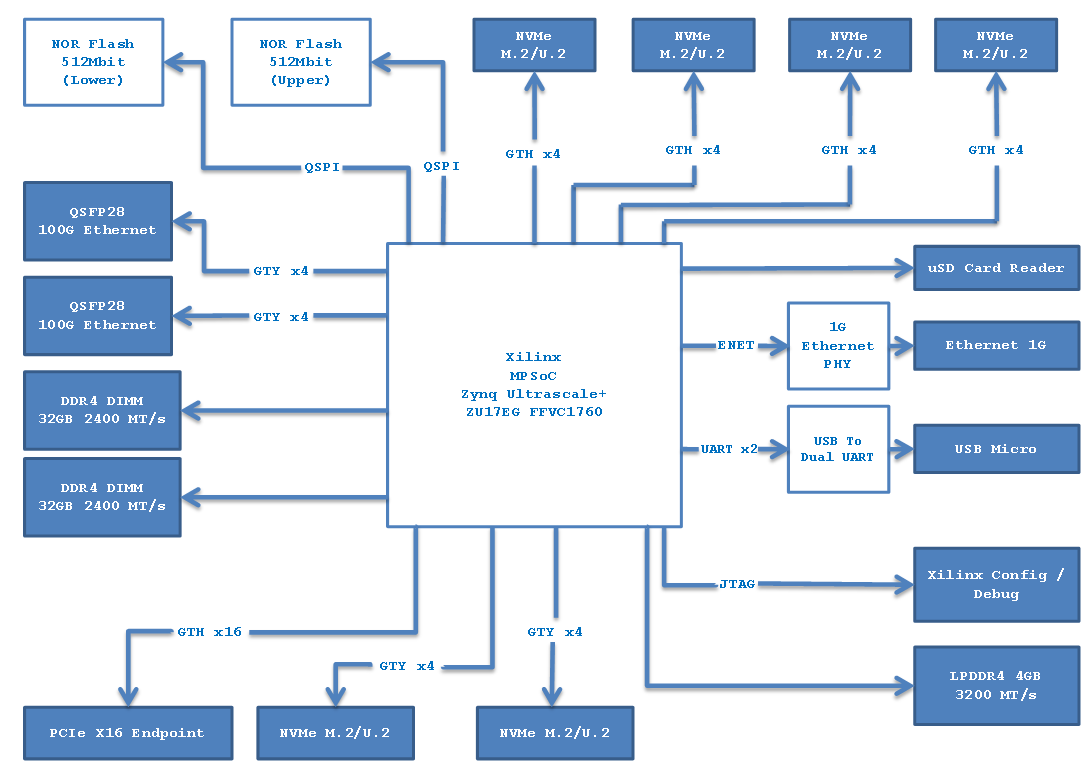

1.    Block Diagram





2.    Platform Feature



2.1.    Programmable Logic



l  Xilinx Zynq Ultrascale+ ZU17EG (XCZU17EG-xFFVC1760)

ü   926K LCs

ü   423K LUTs

ü   847K Flip-Flops

ü   28.0Mb Block RAM

ü   28.7Mb Ultra RAM"



2.2.    Main Processor



l  Quad-core ARM Cortex-A53 MPCore up to 1.5GHz

l  L1 Cache 32KB I/D per core, L2 Cache 1MB, on-chip Memory 256KB



2.3.    Real Time Processor



l  Dual-core ARM Cortex-R4 MPCore up to 600MHz

l  L1 Cache 32KB I/D per core, Tightly Coupled Memory (TCM) 128KB per core



2.4.    External Memory



l  PS LPDDR4

l  PL DDR4 DIMM(UDIMM/RDIMM/LRDIMM) 2 slots: up to 32GB per slot

ü   Each DIMM slots can be configured as NAND module



2.5.    High Speed Networking



l  2x QSFP28 for 10G/25G/40G/50G/100G Ethernet



2.6.    Host Connectivity



l  PCIe Gen3 x16



2.7.    Peripherals



l  10/100/1000Mbps Ethernet

l  USB-UART (2x PS UART)

l  USB-JTAG (Digilent JTAG)

l  MicroSD Card



2.8.    Expansion Slot



l  Expansion Con 1: 2x GTY QUAD

ü   Can be configured as PCIe Gen3 or Other HS IO

l  Expansion Con 2: 4x GTH QUAD

ü   Can be configured as PCIe(x4/x8) or Other HS IO



2.9.    NAND I/F



l  2x DDR4 DIMM slots can be configured as NAND module



2.10. Form Factor



l  PCIe Full-Height Add-On Card

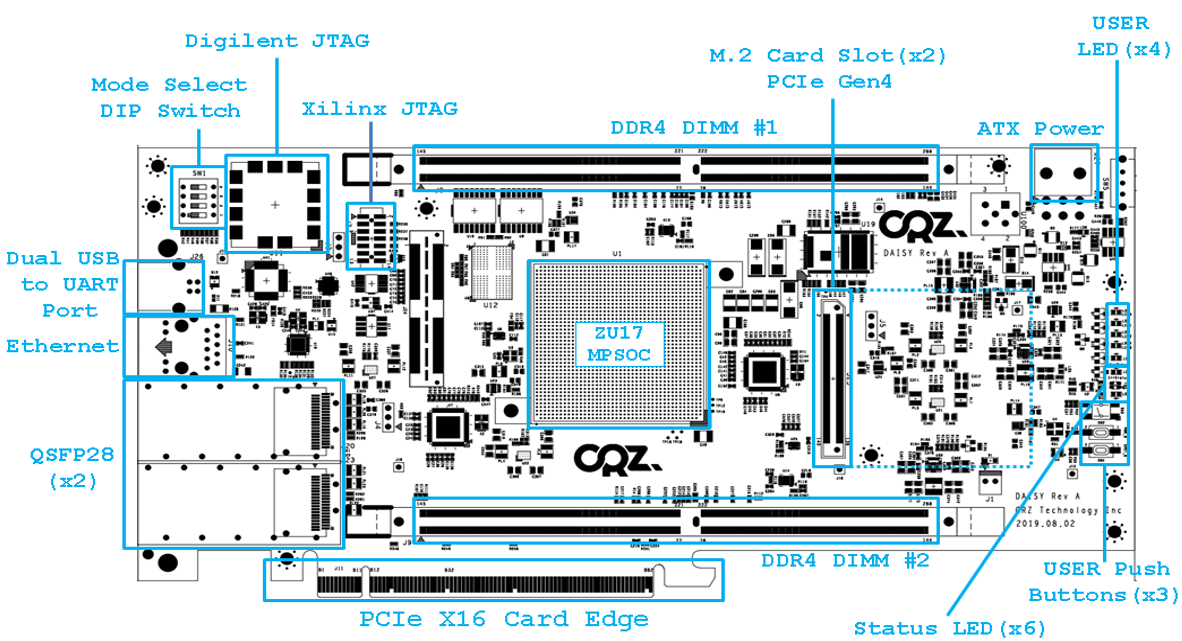

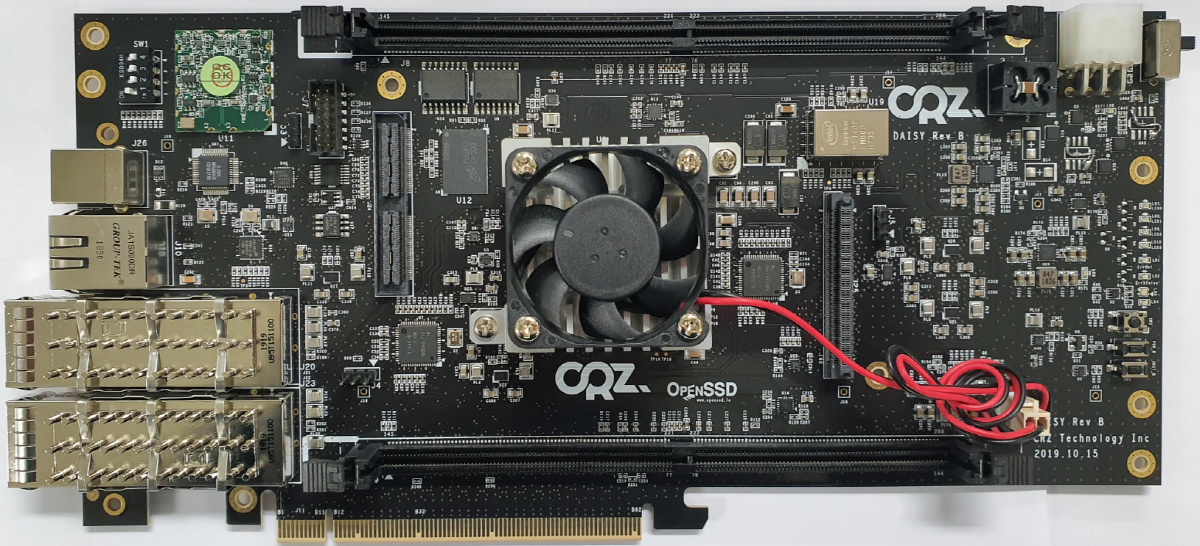

3.    Daisy Physical Layout





4.    Shipping Materials



l  Daisy Openssd Board : 1ea

l  AC/DC Adapter (12V/3A) : 1ea

l  DC Power Adapter Converter Jack : 1ea

l  USB A to B Type cable : 1ea
