2.0으로 업그레이드
l 멀티 IO 전압 지원 : 1.8V 과 3.3V

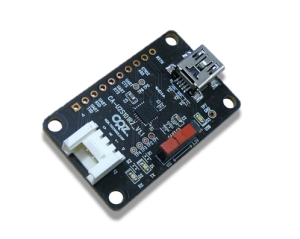

l USB to UART Converter
l 5PIN
min-USB Type Connector
l Support
driver Window ,Linux
| Continue reading | 2015-06-05 오후 3:34:23 |
.JPG)
단종 되었습니다.

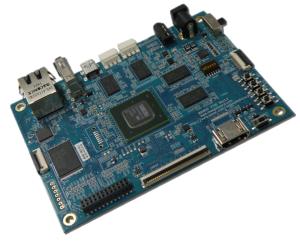

l CPU : Samsung S5PV310 ARM Cortex A9 1GHz/1.3GHz
Application Processor
l Memory : DDR3 SDRAM 2GByte(2Gbit x 8), SCL NAND
Flash 256Mbyte
l Display :
ü 7 WVGA(800x480) Color TFT with Touch
ü 7” 1024x600
(4point Touch)
ü 10.1” 1280x800
(10Point Touch)
l Audio : Wolfson WM8960 Audio Codec
l Ethernet : SMSC LAN9220 10/100Mbps
l USB Host 1.1 : 1 Port
l USB device 2.0 : 1 Port
l SD : Port2(SD/MMC boot), Port3(Wifi or Expansion)
l UART : Port 1(Debug) , Port 2 (RS232), Port
3(Expansion)
l Camera : 2 Port Support (1.3M, 5M Pixel AF Camera)
l HDMI : 1.3V(1080p Full HD)
l Wifi : SDIO, 802.11BGN Support, BT : Uart0, SDIO
l SATA : SATA 2.0 Support(Option)
l Button : Reset : 1ea , Button : 4 ea
l LED Indicator : 2ea
l Power : DC-JACK 5V,2A
l Dimensions : CPU 72mm(W) * 70.5 mm(H) Base
160mm(W) * 90 mm(H)
| Continue reading | 2015-06-03 오후 10:39:18 |

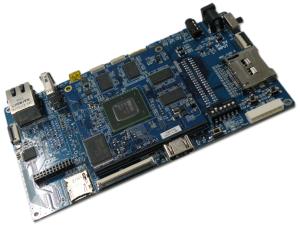

단종 되었습니다.
l CPU :Samsung S5PV310 ARM Cortex A9
1GHz/1.3GHz Application Processor
l Memory : DDR3 SDRAM 2GByte(2Gbit x 8),
SCL NAND Flash 256Mbyte
l Display :
l 7 WVGA(800x480) Color TFT with Touch
l 7” 1024x600 (4point Touch)
l 10.1” 1280x800 (10Point Touch)
l Audio : Wolfson WM8960 Audio Codec
l Ethernet : SMSC LAN9220 10/100Mbps
l USB Host 1.1 : 1 Port
l USB device 2.0 : 1 Port
l SD : Port 0 (SD/MMC), Port1(SD/MMC),
Port2(Expansion), Port3(Wifi)
l UART : Port 0(Bluetooth or Expansion),
Port 1(Debug) , Port 2(Expansion)
l Camera : 2 Port Support (1.3M, 5M
Pixel AF Camera)
l HDMI : 1.3V(1080p Full HD)
l Wifi : SDIO, 802.11BGN Support, BT :
Uart0, SDIO
l SATA : SATA 2.0 Support(Option)
l Button : Reset : 1ea , Button : 4 ea
l LED Indicator : 2ea
l Power : DC-JACK 5V,2A
l Dimensions : 120mm(W) * 90 mm(H)
| Continue reading | 2015-06-03 오후 10:21:59 |

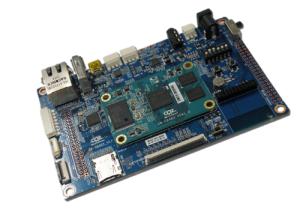

단종 되었습니다.
l CPU : ARM1176JZF-S 533/667MHz Samsung S3C6410
l Memory : 128Mbyte Mobile DDR , SCL NAND Flash 256Mbyte
l Display : 7: WVGA(800x480) Color TFT with Touch
l Audio : Wolfson WM8960 Audio Codec
l Ethernet : SMSC LAN9220 10/100Mbps
l USB Host 1.1 : 1 Port
l USB device 2.0 : 1 Port
l SD : Port 0 (SD/MMC), Port1(Wifi), Port2(Expansion)
l UART : Port 0(Bluetooth or Expansion), Port 1(Debug) , Port
2(Expansion) , Port 3(GPS or Expansion)
l Camera : CCIR601/656 Standard Camera Interface
l Button : Reset : 1ea , Button : 2ea
l LED Indicator : 2ea
l Power : DC-JACK 5V,2A
l Dimensions : CPU 60mm(W) * 40 mm(H)
Base 130mm(W) * 85 mm(H)
| Continue reading | 2015-06-03 오후 9:55:43 |

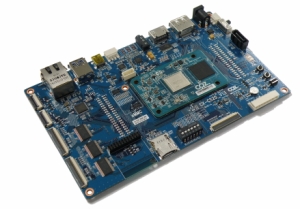

단종 되었습니다.
l Processor : Exynos 5250 ARM Cortex A15
1.7GHz Application Processor
l RAM : LPDDR3 2Gbytes(2Gbitx8)
l Display : 1280x800, 800x480 Color TFT
with Touch Screen Interface
l Audio : Wolfson WM8960 Audio Codec with 1W Stereo
Speaker Amplifier
l Ethernet : 10/100Mbs SMSC9220 IC
l USB : USB 3.0 Host , USB 2.0 OTG
l SD 3.0 : SD/MMC Port 0 , 1 Standard SD
Connector
l SD 3.0 : SD/MMC Port 2 Boot , Port 3 WiFi
& Expansion Connector
l eMMC : Port1 4.5
l UART Port0 : BT & Expansion Connector
l UART Port 1 : RS232
l UART Port 2 : D-SUB9 DEBUG
l HDMI : V1.4(1080p Full HD)
l Camera : CAM Port 2 1.3M, 5M Pixel AF Camera
l MIPI : Port 2
l Dimensions : 170 x 104 mm
| Continue reading | 2015-06-03 오후 7:49:52 |
l Processor
: Samsung S3C2416 266Mhz
l RAM :
Mobile DRAM 64MB
| Continue reading | 2015-06-03 오후 6:01:30 |
단종 되었습니다.
삼성 533MHz 고성능 ARM9EJ-S Application Processor 탑재 개발 보드
Samsung S3C2450 (ARM926EJ-S Application Processor) Development Board
Firmware, RTOS (eCoS외 기타), Widows CE 6.0, Linux 지원
USB Host, USB Device, 10/100 Mbps Ethernet, microSD socket, Audio Codec 기본 지원
WIFI/Bluetooth, 각종 TFT LCD, 각종 Sensor (가속도, 자이로, 기압, 리모콘 등), Camera 인터페이스 확장 지원
| Continue reading | 2015-06-03 오후 4:57:51 |
l ARM1176 삼성 S3C6410 Processor
탑재
l firmware, RTOS, Linux, Android 공부에 적합
l 카메라, WiFi / BT 드라이버 공부 및 각 종 센서 연결하여 드라이버 공부에 적합
l Mobile
DDR 128Mbytes
l SLC
NAND Flash 256Mbytes
l NOR
Flash 4Mbytes
l Display
: RGB LCD 지원
l Audio
: WM8960 Audio Codec 내장
l Ethernet
: 100Mbps Base SMSC9220 이더넷
l USB
: USB 1.1 Host 지원, USB 2.0 Device 지원
l SD/MMC
: 3개 채널 지원
l SPI
x 2 Port
l UART
x 4 port
l JTAG
: Standard ARM JTAG 인터페이스 지원
l CAMERA
: ITU601 /656 8bit Mode
l Key
: 4 x Keys, 1 x Reset Key
l LED
x 2
| Continue reading | 2015-06-03 오후 2:55:45 |
단종 되었습니다.
l CPU : Samsung S5PV210 ARM Cortex A8
, 800Mhz/1GHz Application Processor
l Memory : Mobile DDR2 512Mbytes ,
SLC NAND Flash 256Mbytes
l Connectors(80X4)
: IrDA, Camera, I2S, SPI0/SPI1, SDIO0/2, EBI, UART, LCD,ETC
l Dimensions : CPU 75 x 55 mm Base 145 x 95 mm
| Continue reading | 2015-06-03 오후 1:59:19 |
l 안드로이드 교육용 보드로 적합
l 안드로이드에서 카메라 영상처리에 적합한 보드(듀얼카메라지원)
l S5PC100 667/800Mhz Application Processor
l Mobile / Portable Application에 대한 철저한 고려
l Mobile Multimedia 응용에 최적 보드
l Production Quality에 근접하는 안정된 플랫폼 제공
l 소프트웨어 제공 내역
ü Windows Embedded CE 6.0 BSP Binary & Source 제공
ü U-boot 1.3.4 Source 제공
ü Linux 2.6.29 Binary & Source 제공
ü Google Android Éclair Source 제공
l WiFi/BT 확장 보드에 장착 가능
l SMSC사의 LAN9220 100Mbps Ethernet Controller 채택
| Continue reading | 2015-06-03 오전 11:34:26 |

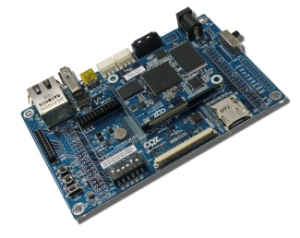

단종 되었습니다.
l ARM926EJ
AM1808 CPU
l Mobile
DDR2 128MB
l SLC
NAND Flash 256MB
l 7”
800x480 with touch or 10.4” 800x600 with touch
l USB
Host 1.1 : 1Port (Full Speed)
l USB
Device 2.0 : 1Port
l SD
: SD/MMC Port 0 , port 1 (WiFi/BT)
l Camera
: Parallel 1 Port
l UART
: UART2 (Debug) / UART1
l Ethernet
: 10/100Mps Ethernet
l Power
: DC-JACK 5V, 1A
l Button
: Reset :1 , Button : 2
l Boot
Switch : 1
l LED
indicator : 1
l Expansion
Connector ( 80x2 ) : EBI,UART,I2C GPIO etc
l Dimensions
: base 120 x 76 mm CPU 50 x 40mm
| Continue reading | 2015-06-02 오후 10:08:03 |
단종 되었습니다.

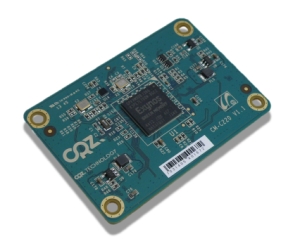

l Samung
S5PC220 Exynos 4412 Cortex-A9 Quad Core
l LPDDR2
1GByte
l ARM
Max Clock : 1400MHz
| Continue reading | 2015-06-02 오후 8:32:10 |
품절
TUNA 2.0 Platform Feature
l XC7Z045-3FFG900 Zynq-7000 FPGA
ü Dual ARM Cortex-A9 1GHz Core
ü NEON DSP co-processor for each core
ü 350K LCs
l 1GB DDR3 component memory on PS side
l Two 128Mb Quad-SPI(QSPI) Flash Memories
l SODIMM DDR3 Memory Slot
l 1 x SD CARD connector
l 1 Gigabit Ethernet Interface
l 1 x USB 2.0 (configurable to Host or Device)
l JTAG and Debug Interface
l 1 x USB-UART Port
l 1 x ARM JTAG
l 1 x PL JTAG
l Status LEDs
l Buttons and Tactile switches
l Indicators and Switches LEDs and Tactile switches
| Continue reading | 2015-04-29 오후 9:39:17 |
.jpg)
단종 되었습니다.
l Samsung Exynos 4412 Cortex-A9 Quad Core Application Processor
l LPDDR2 RAM 1024Mbyte
| Continue reading | 2015-04-09 오후 4:23:26 |
단종 되었습니다.
l CPU : Samsung S5PV210 ARM Cortex A8
, 1GHz Application Processor
l Memory : Mobile DDR2 512Mbytes
, SLC NAND Flash 256Mbytes
| Continue reading | 2015-04-09 오후 12:34:14 |
