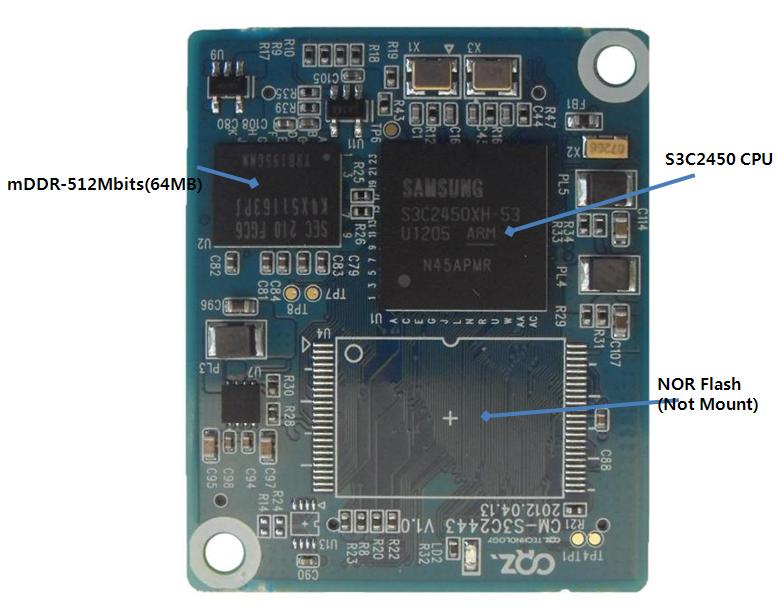

Processor

ARM926EJ Samsung S3C2450 533Mhz

RAM

Mobile DDR 64MB

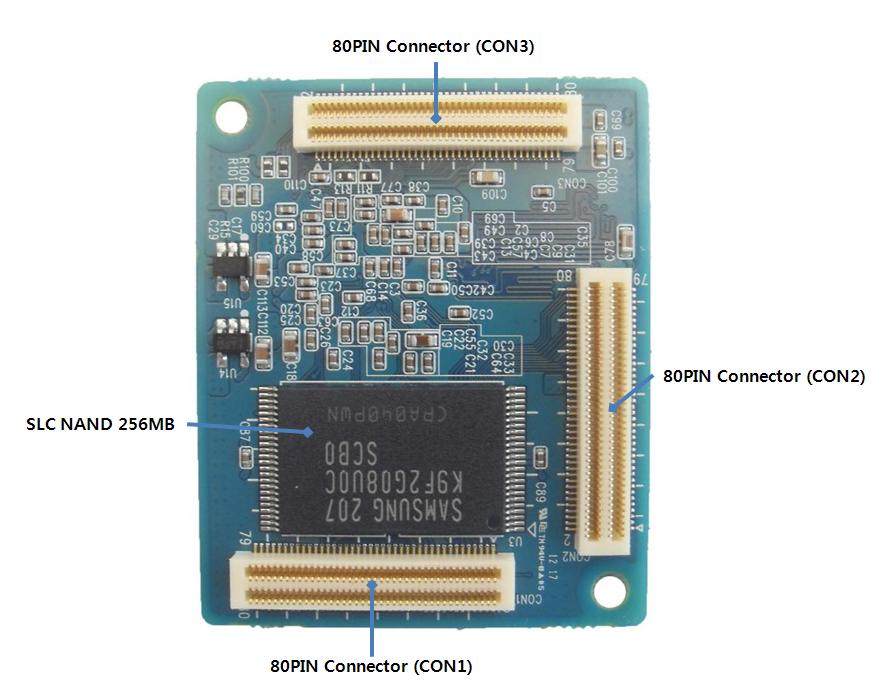

Flash

SLC NAND Flash 256MB

Display

7” 800x480 with touch

Audio

Wolfson WM8960 with 1W Stereo Speaker Amplifier

USB Host 1.1

1 Port (Full Speed)

USB Device 2.0

1 Port

SD

SD/MMC Port0 (WiFi/BT)

SD/MMC Port1 (SD Boot)

WiFi/BT

SDIO 0 Channel 802.11B,G,N

Camera

1Port 1.3M Pixel Camera

UART

UART0

UART1 (Debug)

UART2 (Expansion)

UART3(GPS)

Sensor Interface

I2C 0 Port (3-Axis,Gyro,Light,Remocon etc)

Ethernet

SMSC LAN9220 10/100Mps Ethernet Constroller

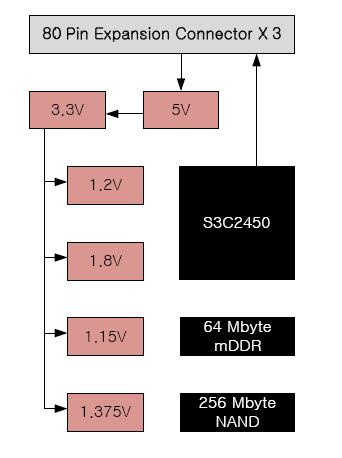

Power

DC-JACK 5V, 1A

Button

Reset :1 , Button : 2

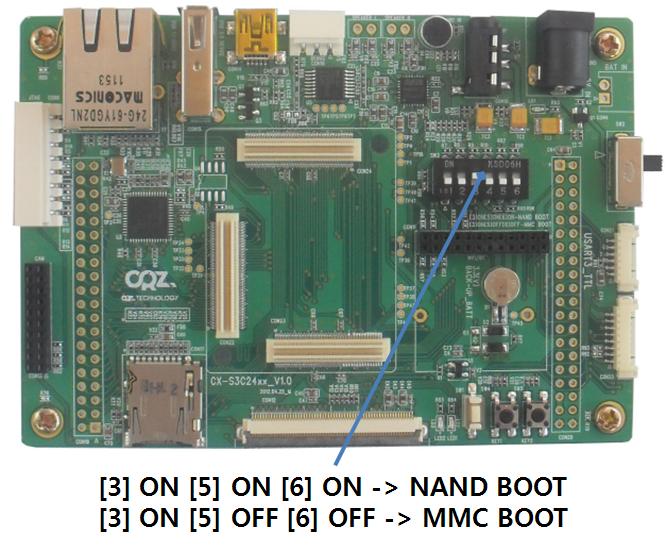

Boot Switch

1

LED indicator

2

Expansion Connector ( 80x2 )

EBI,UART,I2C GPIO etc
