Mango520 Start Kit

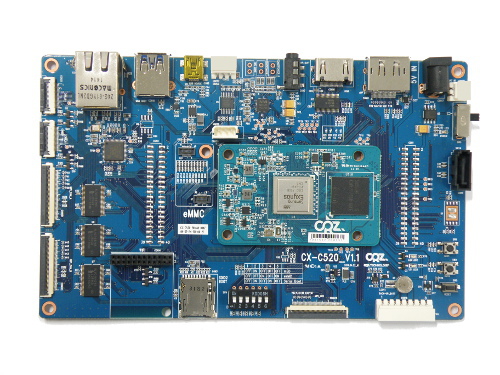

Mango520 Main Board [ Exynos 5250 EVB ]




Price : 490,000



help@crz-tech.com ( 031-701-5057)




Mango 520 Main Board Kit Features



l  Processor : Exynos 5250 ARM Cortex A15 1.7GHz Application Processor

l  RAM : LPDDR3 2Gbytes(2Gbitx8)

l  Display : 1280x800, 800x480 Color TFT with Touch Screen Interface

l  Audio : Wolfson WM8960 Audio Codec with 1W Stereo Speaker Amplifier

l  Ethernet : 10/100Mbs SMSC9220 IC

l  USB : USB 3.0 Host , USB 2.0 OTG

l  SD 3.0 : SD/MMC Port 0 , 1 Standard SD Connector

l  SD 3.0 : SD/MMC Port 2 Boot , Port 3 WiFi & Expansion Connector

l  eMMC : Port1 4.5

l  UART Port0 : BT & Expansion Connector

l  UART Port 1 : RS232

l  UART Port 2 : D-SUB9 DEBUG

l  HDMI : V1.4(1080p Full HD)

l  Camera : CAM Port 2  1.3M, 5M Pixel AF Camera

l  MIPI : Port 2

l  Dimensions : 170 x 104 mm

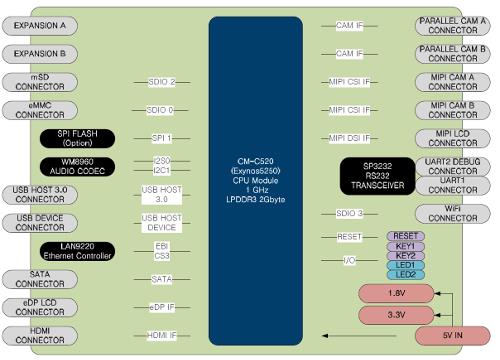

Block Diagram

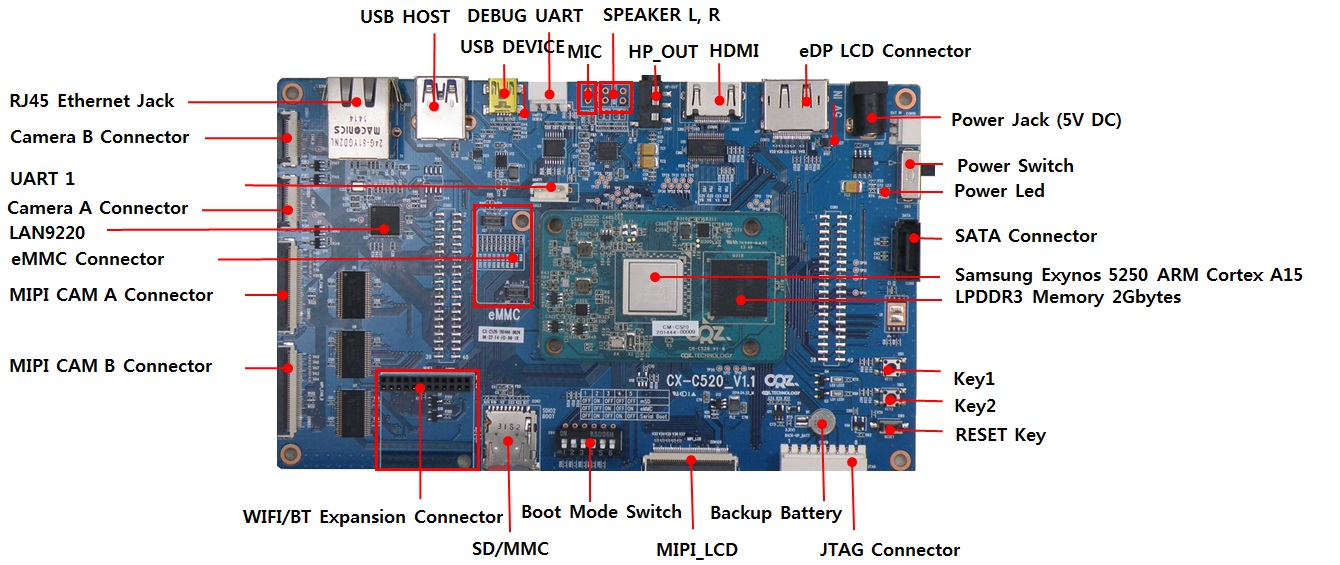

부품 배치도









Shipping Materials





l  CM-520 CPU + CX-520 Base Board : 1ea

l  5V AC DC Adapter : 1ea

l  SDHC Card 8GB (Booting Image 포함) : 1ea

l  3pin Serial Cable : 1ea

l  Mini USB Cable : 2ea

l  USB to Serial RS232 Module : 1ea
